Description
Auto-Set™
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
Manual Mode
Gives you the flexibility to manually set the machine when welding aluminum, stainless steel or anytime you want to set your own parameters on mild steel.
Angled All Aluminum Drive System
Robust wire drive with Quick Select™ drive roll and calibrated tension knob creates consistant feeding and easy setup for up to 15-foot MIG guns.
Quick Select™ Drive Roll
Makes setup quicker by offering three grooves – two for different size solid wire and a third for flux-cored wire.
120V Input Power
Uses 120V household input power so there is no special power requirements. Flexible to use in any location!
Smooth-Start™
This technology provides a smooth, spatter-free start. The best starting machine in the 120V MIG category! No more pop-gun starts or spatter to clean up.
Auto Spoolgun Detect
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Thermal Overload & ‘Tip Saver’ Short Circuit Protection
Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal componets from damage.
| Processes | MIG (GMAW) | |||||||
|---|---|---|---|---|---|---|---|---|
| Material Type |
|
|||||||
| General specifications | Input Power |
Requires 1-Phase power
120V, 20 Amps, 60 Hz
|
||||||
| Rated Output |
90 Amps at 18.5 VDC, 20% duty cycle
|
|||||||
| Welding Amperage Range |
30 – 140 Amps
|
|||||||
| Wire Speed |
15 – 136 IPM (0.4 – 9.1 m/min)
|
|||||||
| Net Weight | 51lb (23.1 kg) | |||||||
| MaxOpenCircuitVoltage |
30
|
|||||||
| WireDiameter Capacity |
.024 – .030 in (0.6 – 0.8 mm) Solid Steel
.024 – .030 in (0.6 – 0.8 mm) Stainless
.030 – .035 in (0.8 – 1.2 mm) Flux Cored
|
|||||||
| MaxSpoolSize Capacity |
8 in (203 mm)
|
|||||||
| Dimensions |
H: 12.5 in. (318 mm)
W: 11.25 in. (286 mm)
D: 20.5 in. (521 mm)
|
|||||||
| Applications | Farm and Ranch | |||||||
| Field Maintenance and Repair | ||||||||
| Home/Hobby | ||||||||
| Mechanical Contracting | ||||||||
| Metal Art/Sculpture | ||||||||
| Motorsports (car, truck, bike, etc.) | ||||||||
| Schools/Training | ||||||||
| Welding Projects | ||||||||
| Spool Gun Option | Spool Gun (300371) | |||||||

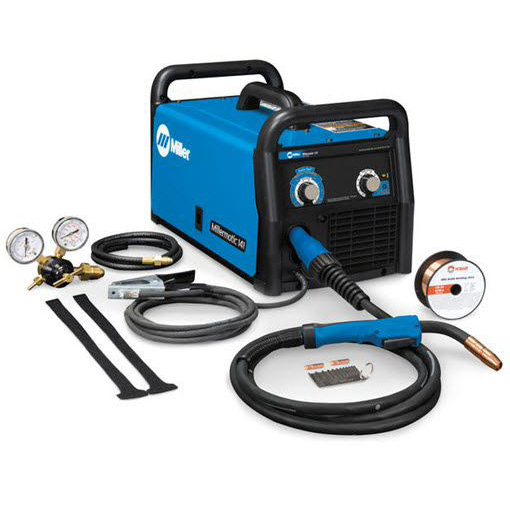

What’s Included
- Millermatic 141
- 6.5-ft. (2 m) power cord with plug
- 10-ft. (3 m) M-100 MIG gun and cable assembly
- 10-ft. (3 m) work cable with clamp
- Argon and AR/CO2 mix flow gauge regulator with gas hose
- Hobart® spool of .030-in. (0.8 mm) solid wire
- Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in.
- (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
- Two contact tips for .030-in. (0.8 mm) wire
- Material thickness gauge (#229 895)
- Velcro cord wraps
Accessories:
Cart: 301259
Cover: 301262
Spool Gun: 300371
